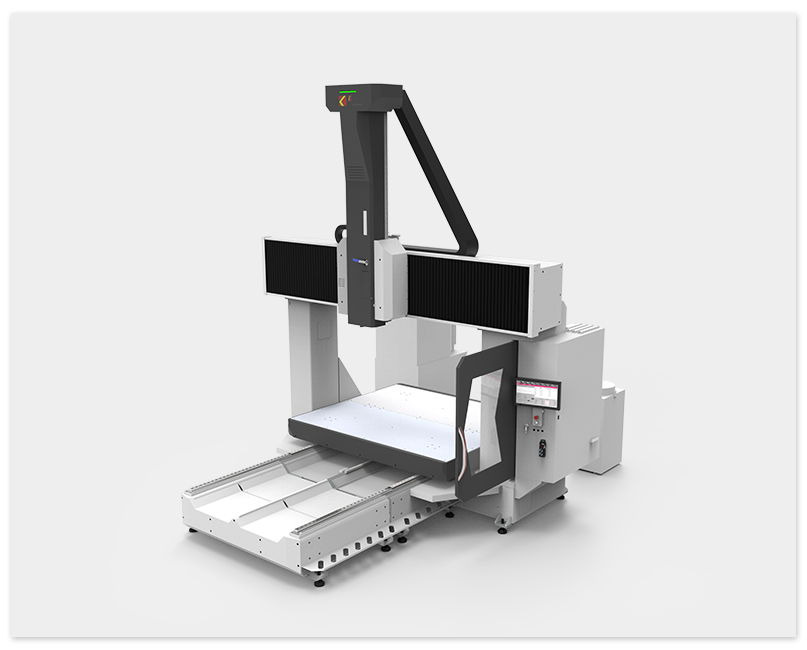

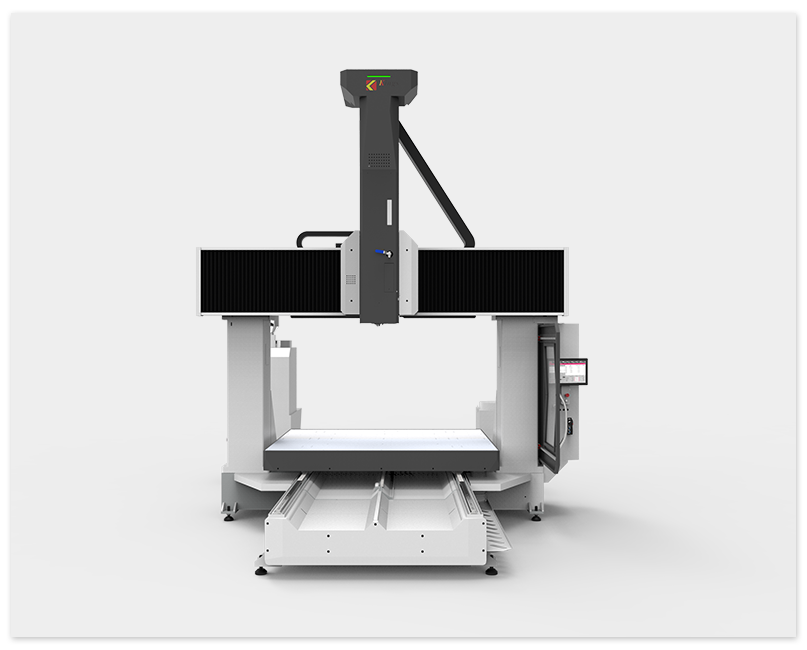

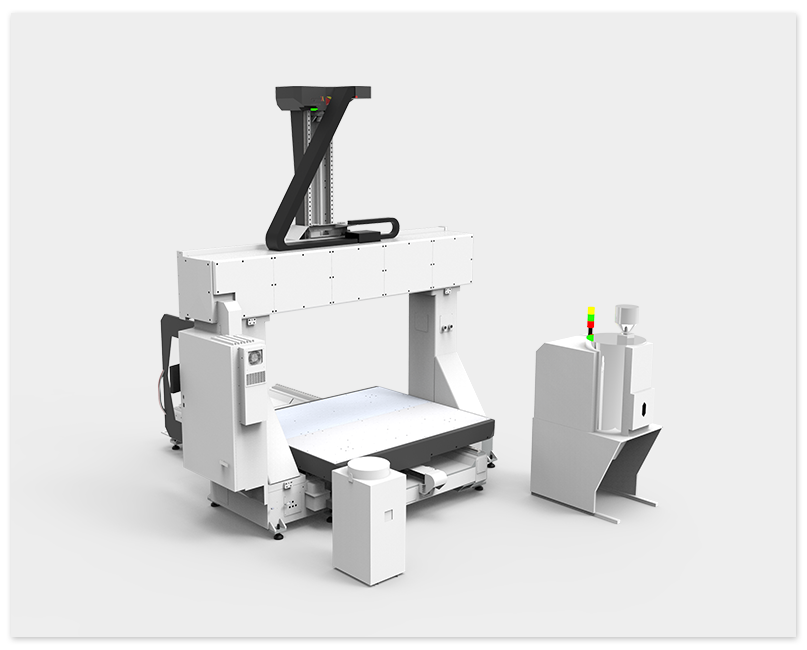

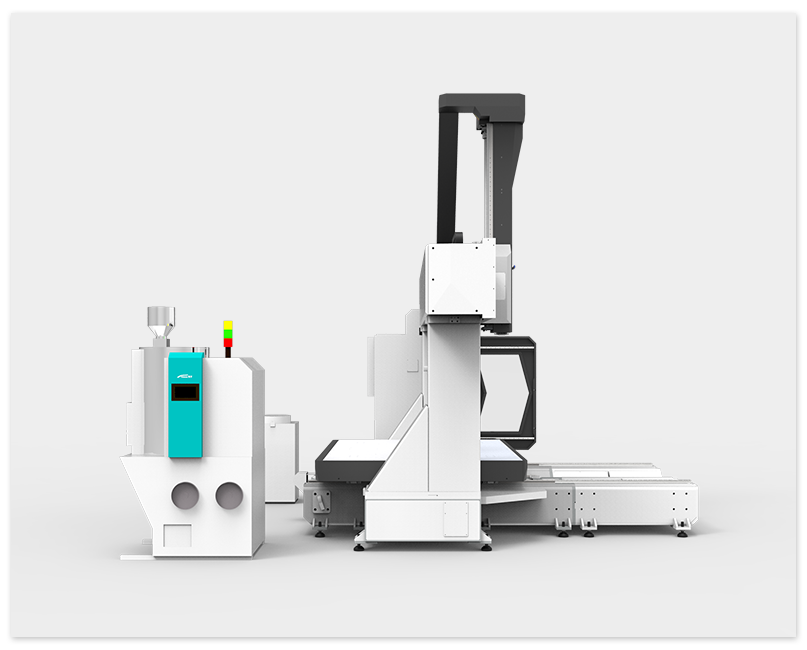

Kings FGF 2420 3D Printer | Hybrid Additive & Subtractive

Download
Kings FGF 2420 3D Printer directly deposits granular raw material onto the print bed. It comes in two versions: additive-only and additive & subtractive. Designed for large projects, it ensures quick turnaround, reliability, low material costs, high speed, and strong final products.

Advantages

  • feature-icon-01 Machine Status Indicator Lamp
    Displays real-time machine status for efficient monitoring and operation.
  • feature-icon-01 Plug-and-Play with Integral Hoisting
    Easy setup with built-in hoisting feature; simply plug in to start using.
  • feature-icon-01 Emergency Stop & Safety Mode
    Ensures immediate shutdown for enhanced operator safety.
  • feature-icon-01 100kg Automatic Feeder
    Provides consistent material supply with a high-capacity 100kg feeder.

Technical Parameters

Molding Technology Fused Granular Fabrication
Molding Dimensions (L*W*H) 2400 * 2000 * 1350mm (Additive Only)
(L*W*H) 2400 * 2000 * 1000mm (Additive & Subtractive)
Machine Dimensions (L*W*H) 4400 * 4100 * 4700 mm
Optional Functions Oblique printing, vertical printing function
Working Surface Temperature ≤120 degrees Celsius
Printing Bed Aluminum Platform
Optional Nozzle Diameter 3-16mm
The Highest Temperature of the Nozzle ≤450 degrees Celsius
Nozzle Heating Method Four-zone Intelligent Heating
Printing Connection Method SD/USB/WiFi
Slicing Supported Formats STL/OBJ/AMF/3MF
Compressed Air Pressure 0.6MPA
Materials PLA/PETG/ABS/PC/PA/PP/HDPE/TPU/TPV/EVA/PETG+GF/PPS+GF/PA+CF/ABS+CF/PC+CF/PEI+CF, and etc.
Material Particle Diameter 1-5mm
Automatic Feeder Integrated
Power Supply Voltage 3-phase AC 380V
Rated Power 60kW
Machine Weight 6000kg

Application Cases

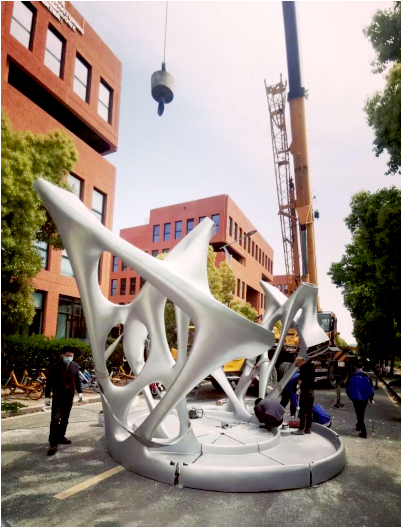

  • Large Outdoor Art Installation

    Large Outdoor Art Installation

    This large-scale outdoor art piece, crafted with the Kings 3D FGF 2420, combines intricate design with weather-resistant durability, making it perfect for impactful public displays.

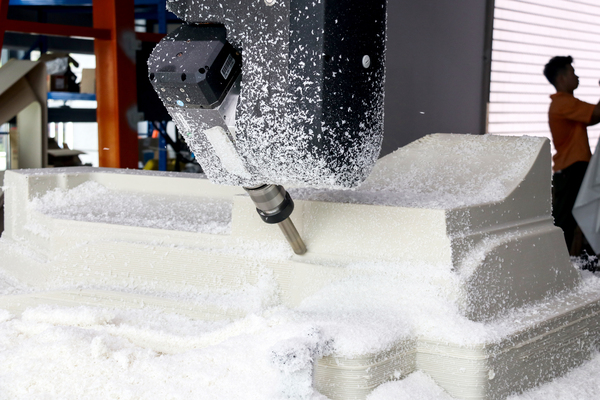

  • Heavy-Duty Base Structure

    Heavy-Duty Base Structure

    Printed using the Kings 3D FGF 2420, this durable base structure offers robust support for industrial applications, showcasing precision and strength ideal for demanding environments.

< >
